In today's increasingly complex power system, ensuring the safe and stable operation of equipment is of paramount importance. Series resonant devices, as a core technology, play an indispensable role in it. But what exactly is a series resonant device? How can it help us achieve this goal?

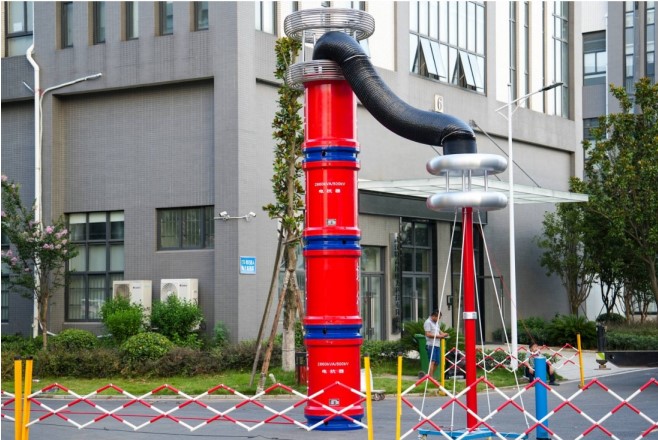

What is a series resonant device?
Simply put, a series resonant device is a testing device that uses a series connection of inductance and capacitance to generate high voltage at a specific frequency. When the reactance of inductance L and capacitance C in the circuit are equal, resonance occurs. In this resonant state, the total impedance of the circuit will become very small, resulting in a voltage much higher than the power supply voltage. This characteristic makes it very suitable for conducting voltage withstand tests on high-voltage electrical equipment, such as transformers, cables, circuit breakers, etc.
Key factors affecting the performance of series resonant equipment
To maximize the effectiveness of series resonant devices, there are several factors that require special attention:
The matching of inductance and capacitance: This is fundamental to whether resonance can occur smoothly. The appropriate combination of inductance and capacitance values is necessary to achieve the desired resonance effect at the expected frequency.
Testing frequency: Different devices require different frequencies for testing, and precise frequency control is the key to ensuring testing accuracy.
Stability and output capability of power supply: A stable power supply is the foundation for accurate testing, while sufficient output capability can meet the needs of devices with different capacities.
Measurement accuracy: Accurate measurement of voltage, current, and frequency directly affects the reliability of test results.
Smart Choice of Wuhan UHV Power Technology Co., Ltd
In the field of series resonance equipment, Wuhan UHV Power Technology Co., Ltd. has provided numerous high-performance and high reliability solutions with its profound technical accumulation and innovation capabilities. Their products are widely used in power systems to ensure the safe operation of equipment.
Application and correlation of series resonant devices
The "correlation" of series resonant devices is reflected in their close connection with numerous power equipment. Whether it is high-voltage insulation testing of transformers, DC and AC withstand voltage testing of cables, or even insulation performance testing of switchgear, the presence of series resonant equipment is indispensable. Its core function is to simulate the actual operating conditions that may occur in the power system during operation, in order to detect potential insulation hazards in advance.
How to make series resonant devices better?
To fully leverage the value of series resonant devices, we can start from the following aspects:
Accurate frequency control: Advanced frequency synthesis technology is used to ensure the stability and accuracy of the resonant frequency, reducing testing errors.
Intelligent operation interface: Design a friendly and intuitive operation interface, simplify the operation process, and improve work efficiency.
Multiple safety protections: Comprehensive protection mechanisms for overvoltage, overcurrent, overheating, etc. ensure the safety of operators and equipment.
Data recording and analysis: Integrate powerful data recording and analysis functions to facilitate users in tracing and evaluating test results.
Wuhan UHV Power Technology Co., Ltd. has done quite well in this regard, and their products have reached industry-leading levels in intelligence and safety.
Frequently Asked Questions (FAQ)
What is the difference between series resonance and parallel resonance? During series resonance, the impedance is minimized and the voltage increases, commonly used for withstand voltage testing; Parallel resonance results in maximum impedance and increased current, commonly used in filtering circuits.
What preparations are needed before conducting a series resonance test? It is necessary to understand the capacitance, rated voltage, test voltage, and other information of the tested equipment, and select appropriate resonant transformers and inductors.
Why is it said that series resonant devices can effectively detect insulation defects in cables? The local high voltage generated during resonance can better excite the weak insulation points in the cable, making it easier to detect potential breakdown risks.
What should be noted when using series resonant devices in humid environments? Pay attention to the moisture-proof protection of the equipment and ensure good insulation of the connecting lines to avoid testing errors or safety hazards caused by moisture.
How to choose series resonant equipment suitable for cables of different capacities? It is necessary to calculate the required resonant transformer capacity and inductor capacity based on the total capacitance of the cable and the required test voltage to meet the testing requirements.
