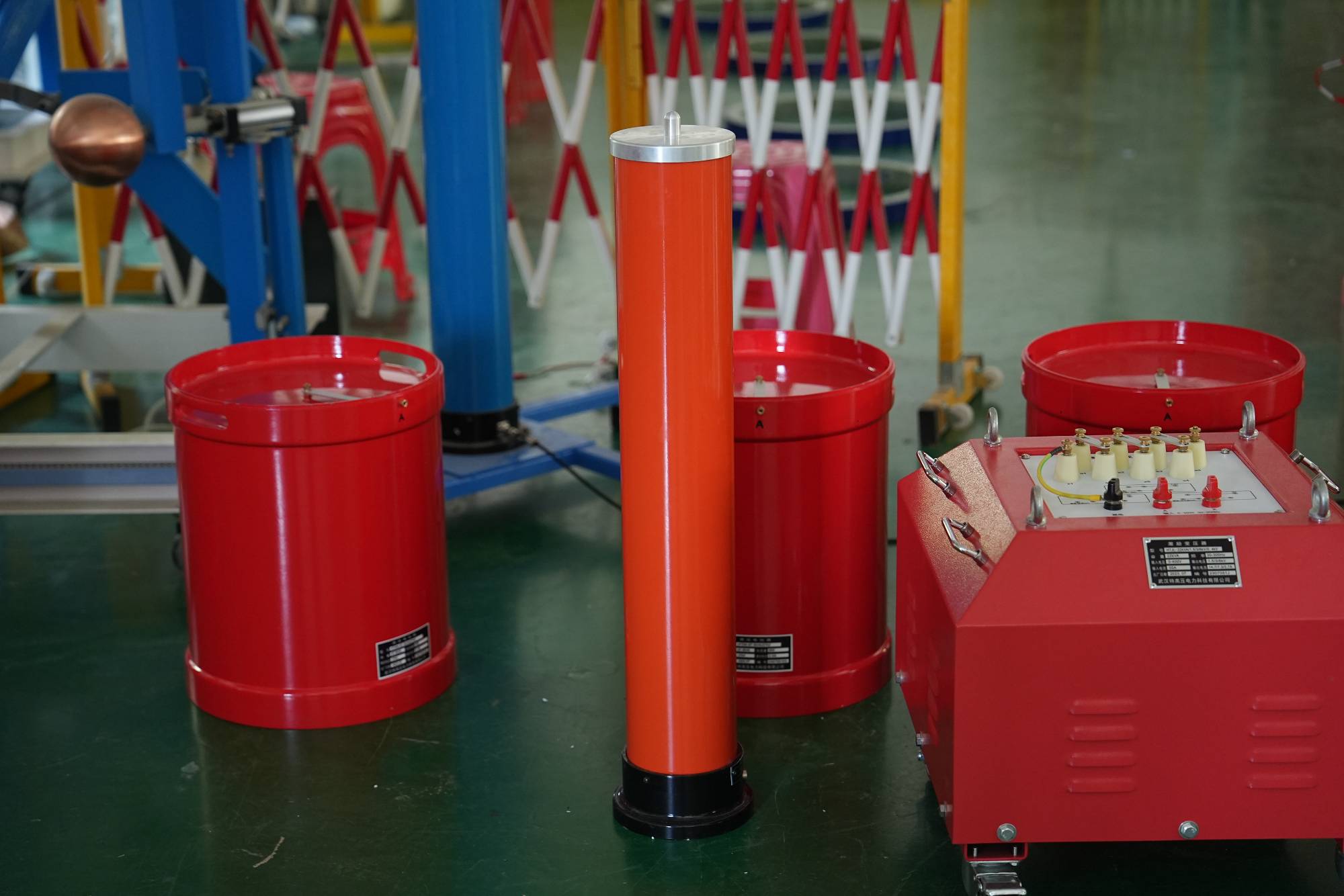

Behind the safe operation of power equipment, there is a crucial testing task - AC withstand voltage test. What is an AC voltage withstand test device? Simply put, it is a professional equipment that can apply AC voltage far exceeding the normal working voltage to power equipment to test whether the insulation performance of the equipment is qualified. Imagine conducting a high-voltage test on a mobile phone to ensure that it does not have any problems in extreme situations. This test can effectively detect insulation defects that may exist during the manufacturing, transportation, or use of the device.
Why is this important?
The purpose of the AC withstand voltage test is to simulate the overvoltage situations that the equipment may encounter during operation, such as lightning strikes, closing inrush currents, etc. By applying an AC voltage higher than the rated voltage, we can force the hidden insulation weak points to be 'exposed'. If the equipment has good insulation, it can withstand this' severe test '; On the contrary, phenomena such as breakdown and discharge may occur, thereby determining that the equipment is unqualified.
Factors affecting the experimental results
Conducting AC withstand voltage tests is not fixed, and there are several key factors that can affect the accuracy of the test:
The amplitude and frequency of the test voltage need to be set according to the equipment type and national standards, as being too high or too low may lead to misjudgment.
Test duration: Different equipment and standards have different test duration requirements, and insufficient time may not fully expose defects.
Environmental factors such as temperature, humidity, altitude, etc. can all affect insulation performance and need to be carried out under specified environmental conditions.
Test wiring method: Correct wiring is a prerequisite for ensuring accurate test data.
What tools can help you?
At Wuhan UHV Power Technology Co., Ltd., we are well aware of the importance of reliable equipment. Professional communication voltage withstand test devices usually have the following characteristics:
High precision voltage control: capable of accurately adjusting and stabilizing the output voltage.
Overcurrent protection function: It can promptly cut off the power supply in case of breakdown, protecting equipment and personnel safety.
Data recording and analysis: capable of recording voltage, current, and other data during the experimental process, facilitating subsequent analysis.
Convenient operation: Humanized design, easy to understand operation.
What fields are closely related to experiments?
The application scope of AC withstand voltage test is very wide, covering almost all fields that require ensuring electrical insulation reliability:
High voltage electrical appliances: such as transformers, circuit breakers, transformers, etc.
Wire and cable: Various specifications of power cables.
Electric motors and generators: ensure the safety of their insulation systems.
Insulation material: used for performance testing of new materials.
New energy equipment: such as wind turbines, photovoltaic inverters, etc.
How can we do better?
Strictly follow national standards: Familiarize oneself with and strictly conduct experiments in accordance with relevant national or industry standards.
Choose appropriate testing equipment: Based on the voltage level and capacity of the tested equipment, select a testing device with stable performance and high accuracy. The equipment provided by Wuhan UHV Power Technology Co., Ltd. has rich experience in high-voltage testing technology and can meet various rigorous testing requirements.
Standardize operating procedures: Ensure that testing personnel have received professional training, are proficient in operating procedures, and have taken appropriate safety measures.
Regularly calibrate and maintain equipment to ensure the accuracy and reliability of the testing apparatus.
Combining other testing methods, such as partial discharge measurement, with withstand voltage testing, can more comprehensively evaluate the insulation status of equipment.
FAQ
Q: What is the difference between AC voltage withstand test and DC voltage withstand test? Answer: The two have similar purposes, but the tested object and the insulation defects reflected are different. The communication withstand voltage test is closer to the actual operating conditions of the equipment, and is sensitive to the capacitive leakage current and dielectric loss of the insulation; The DC withstand voltage test focuses more on detecting the DC resistance of insulation and whether ionization may occur.
Q: What kind of equipment requires AC withstand voltage testing? Answer: All electrical equipment with rated voltage above a certain level and strict requirements for insulation performance, including but not limited to transformers, cables, switchgear, etc., need to undergo AC withstand voltage testing.
Q: What is the basis for selecting the test voltage? Answer: The selection of test voltage is mainly based on relevant national standards, industry specifications, and the technical conditions of the tested equipment. It is necessary to consider the rated voltage, insulation level, and possible overvoltage factors of the equipment.
Q: What if there is a sudden breakdown during the experiment? Answer: Once breakdown occurs, the testing device should be able to quickly cut off the power and record the voltage value at the time of breakdown. At this time, the test should be stopped immediately, the cause of breakdown should be analyzed, and corresponding repairs or scrapping should be carried out.
Q: How to ensure the safety of AC voltage withstand test? Answer: Ensuring the safety of the test requires cooperation from multiple parties: operators need to wear insulation protective equipment, safety warning signs should be set up at the test site, and there should be a dedicated person to supervise. The experimental device itself should have complete safety protection functions, such as overvoltage, overcurrent, leakage protection, etc. Wuhan UHV Power Technology Co., Ltd. always puts safety first when designing products.
